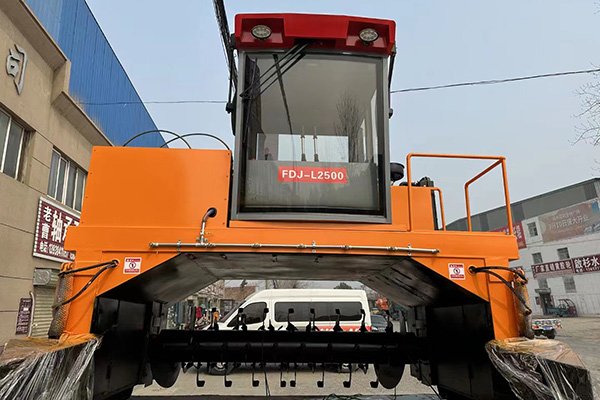

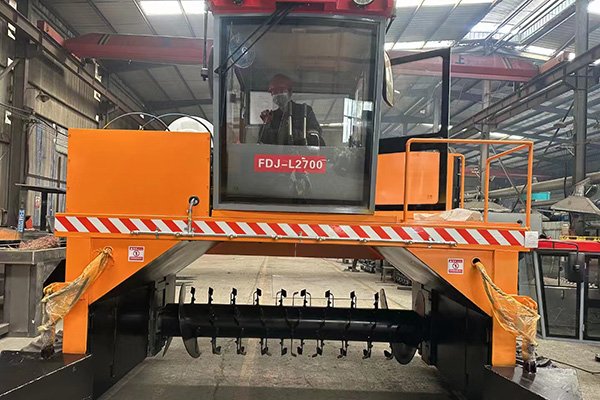

Semi hydraulic crawler type compost turner
20+ years of experience
Introduction
Semi-Hydraulic Crawler Type Compost Turner is an efficient and versatile composting machine designed for small to medium-sized organic fertilizer plants, livestock farms, and waste treatment facilities. Equipped with a crawler walking system, it offers strong ground grip, smooth mobility, and excellent performance on uneven or muddy surfaces.
The machine uses a semi-hydraulic lifting mechanism to easily adjust the turning drum, enabling deeper, more thorough material flipping and better oxygen distribution. This accelerates compost fermentation, eliminates harmful bacteria, and helps produce high-quality organic fertilizer in a shorter time.
With features such as low energy consumption, simple operation, and easy maintenance, the semi-hydraulic crawler compost turner is an ideal choice for improving compost efficiency and reducing labor costs. It provides a reliable, practical solution for sustainable waste recycling and organic fertilizer production.
Advantages

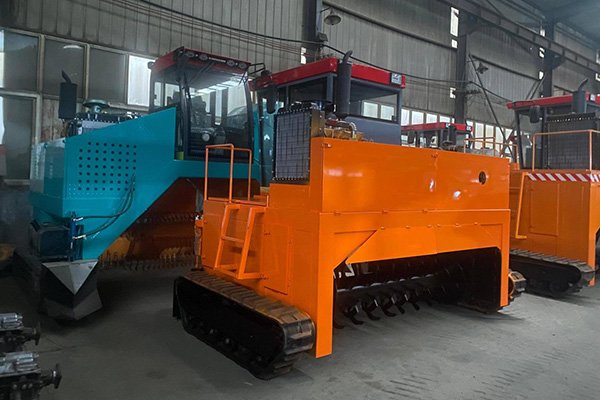

The body shell is made of 3mm cold steel plate, which is more durable

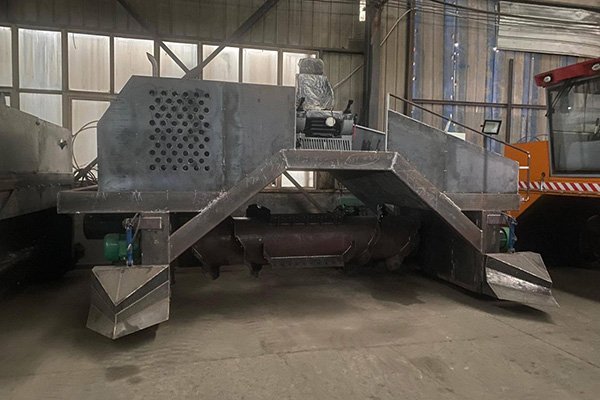

We perform dynamic balancing on the shafts of every machine to ensure smooth operation.

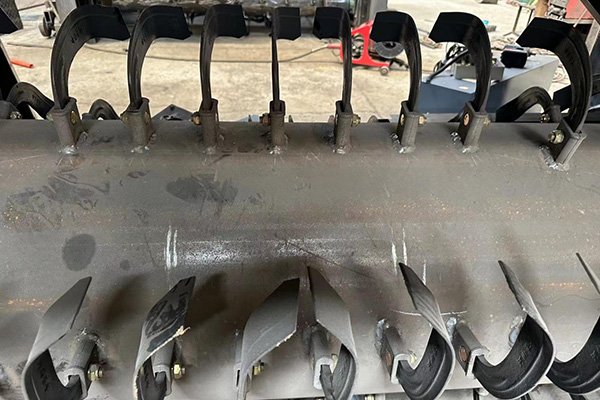

The blades are all heat-treated and made of manganese steel, resulting in higher strength and greater wear resistance.
Parameter
| Model | Capacity | Working Speed | Power | Working tool diameter |
| ZKFDJ-L2500 | 800-1000 m³/h | 5-10 m/min | ZH4102-65kw 88HP | ∅680 mm |
| ZKFDJ-L2600 | 900-1100 m³/h | 5-10 m/min | R4108-88kw 120HP | ∅725 mm |
| ZKFDJ-L2800 | 1000-1200 m³/h | 5-10 m/min | R4108-98kw 130HP | ∅826 mm |
| ZKFDJ-L3000 | 1000-1200 m³/h | 5-10 m/min | R6105-115kw 156HP | ∅826 mm |
| ZKFDJ-L3200 | 1200-1500 m³/h | 5-10 m/min | R6105-132kw 180HP | ∅826 mm |
| ZKFDJ-L3500 | 1300-1600 m³/h | 5-10 m/min | R6108-175kw 238HP | ∅910 mm |
| ZKFDJ-L4000 | 1300-1600 m³/h | 5-10 m/min | R6108-194kw 264HP | ∅910 mm |
